FOCUS the Newest 2300mm Paper Coating Machine with Full Service
DESCRIPTION
FOCUS the Newest 2300mm Paper Coating Machine with Full Service
Grade: Paper board
Design speed: 400m/min
Operation speed: 300-350m/min
Max width of base paper: 2500mm
Weight of base paper: 120-360g/㎡
Coating mode: #1 Air knife coating
#2 Scraper coating
Coating weight: Air knife coater: 20-25g/m²
Scraper coater: 10-20g/m²
The coating solid content: air knife coating: 30-35%
Scraper coating: 48-60%
Driving mode: single side hot air drying
Steam pressure: heat exchanger less than 0.8 MPa
Finishing dryer less than 0.3 MPa
The compressed air pressure: 0.6 MPa
Transmission mode: frequency conversion motor sectional transmission
Total Power: 185 KW
Dimension: L x W x H = 36000mm x 7500mm x 4900mm
TECHNICAL DATA
| Items | Parameters |
| Max. Parent Web Width | 2300mm |
| Max. Parent Web Diameter | 2200mm |
| Max. Rewinding Diameter | 2100mm |
| Compress air pressure | 0.6MPa |
| Base paper weight Range | 40-250gsm |
| Max. Machine Speed | 350m/min |
| Overall dimension | 110000*7500*7000mm |
| Weight | 5000kg |
| Voltage | 220V, 380V |
GENERAL STRUCTURE
Double working position roll-over unwinding frame ( Automatic splicing device)→ No.1 Blade Combined measuring rod coater→hot air dry system (4mx3)→ Draw roll →1# Two roll calender→2# Blade Combined measuring rod coater→hot air dry system (4mx4)→ Draw roll→2# Two roll calender →3# Blade Combined measuring rod coater→ hot air dry system(4mx3)→Back water coater→Hot air dry system (4mx1) →φ1500 finishing cylinder (3 pieces)→Cold water roll→3# Two roll calendar→ Automatic splicing device→ Double working position turn over rewinding frame (automatic correction)
APPLICATION
Thermal paper after coating
Thermal Paper Jumbo Roll
Thermal Paper POS Roll
Thermal Paper Label Roll
MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE
Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request
WHY CHOOSE US
1.) Professional Siemens quality control system
2.) Simple operation
3.) High degree of automation
4.) Turn key projects
5.) More than 20 years experience
6) Double working station
7) Super Calendar
8) High capacity, low consumption
COMPANY INFORMATION
SUCCESSFUL MACHINE PROJECTS
THERMAL PAPER COATING MACHINE PRODUCTION PROCESS
CUSTOMER FEEDBACK
CERTIFICATE
FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Product Tags:
|
|

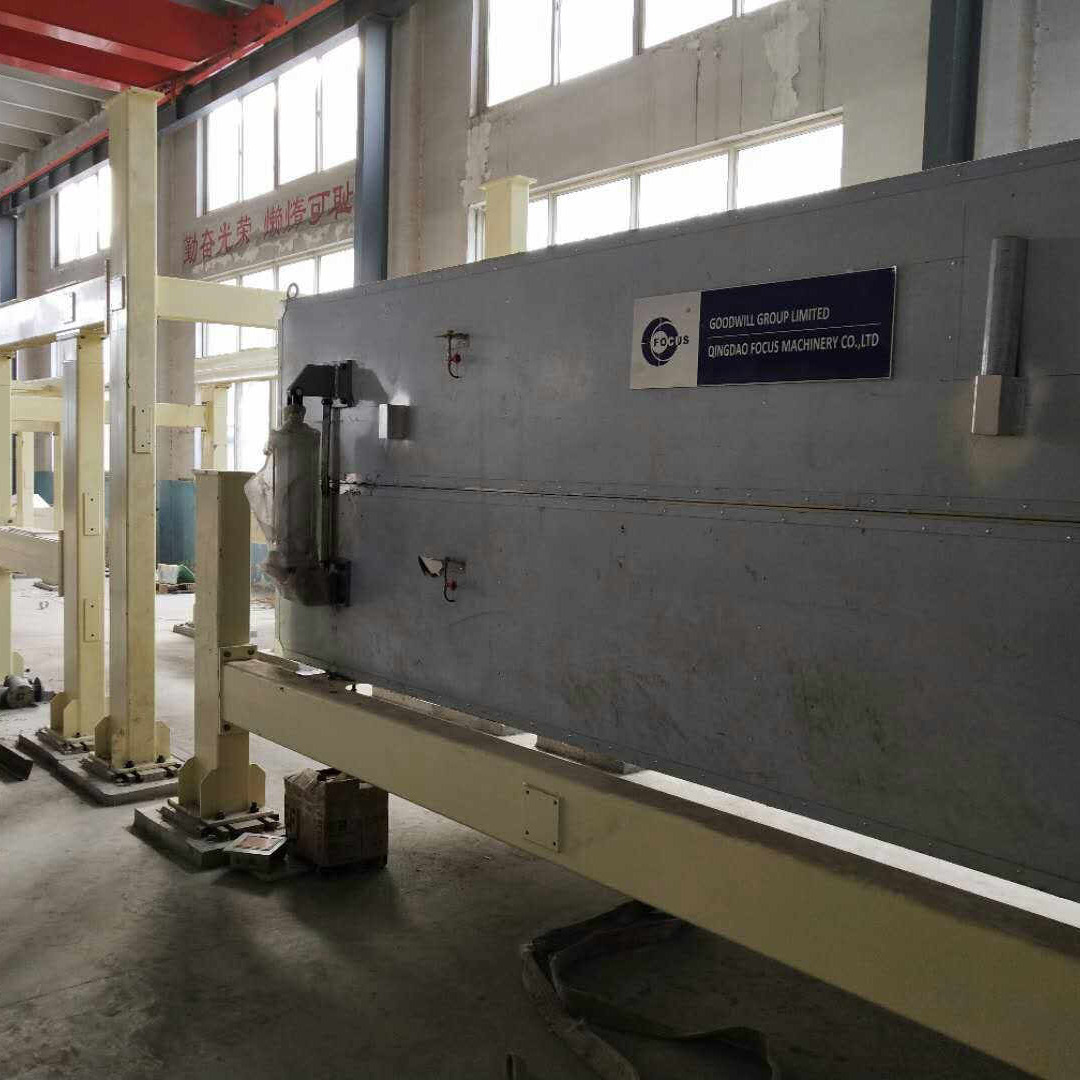

2300mm 5t Paper Coating Machine Thermal Paper Roll Machine Images
|
